Water and dust sealing
Perimeter doors, covers and access panels need consistent compression to reduce ingress risk in outdoor environments.
Solutions / Outdoor Electrical Enclosures
Custom gasket materials for outdoor electrical enclosures.
BISCOTECH supplies silicone foam, EPDM rubber, CR foam and converted sealing parts for control cabinets, junction boxes, power equipment housings and outdoor electrical enclosures.
Discuss Your ProjectQuotes in as little as 30 minutes. Same-day drawings and samples.
Application challenge
Outdoor enclosures need stable seals through weather and service cycles.
Enclosure gasket sealingElectrical cabinets and control boxes are exposed to rain, dust, heat, humidity, UV, vibration and repeated maintenance. Door seams, cable ports, panel interfaces and ventilation structures all need compressible sealing parts that keep reliable contact over time.
BISCOTECH helps engineering and purchasing teams choose practical foam or rubber materials, then converts them into adhesive-backed strips, die-cut gaskets, cushioning pads and custom parts for production assembly.
Key pain points
Small gasket details can decide long-term enclosure performance.
Compression set
Gaskets must recover after long-term compression so the seal remains effective after service and repeated opening.
Weather exposure
Heat, cold, ozone, UV and humidity can accelerate aging when the material is not matched to the enclosure location.
Fast assembly
Adhesive-backed rolls, kiss-cut parts and die-cut frames help operators place gaskets accurately and reduce assembly variation.
Silicone Foam
EPDM Rubber
CR Foam
PU FoamMaterial options
Foam and rubber choices for enclosure sealing.
01
Silicone Foam
For wide temperature range, compression recovery, flame-retardant sealing and demanding outdoor gasket designs.
02
EPDM Rubber
For weather-resistant door gaskets, ozone resistance, moisture protection and long-term outdoor exposure.
03
CR Foam
For cushioning, oil resistance, flame-retardant needs and protective pads around industrial cabinet assemblies.
04

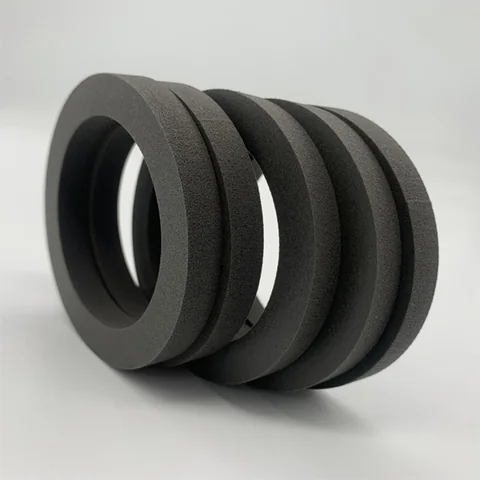

PU Foam
For soft dust sealing, gap filling, cushioning and adhesive-backed pads inside enclosure assemblies.
Typical applications
Where converted gasket parts are used in outdoor cabinets.

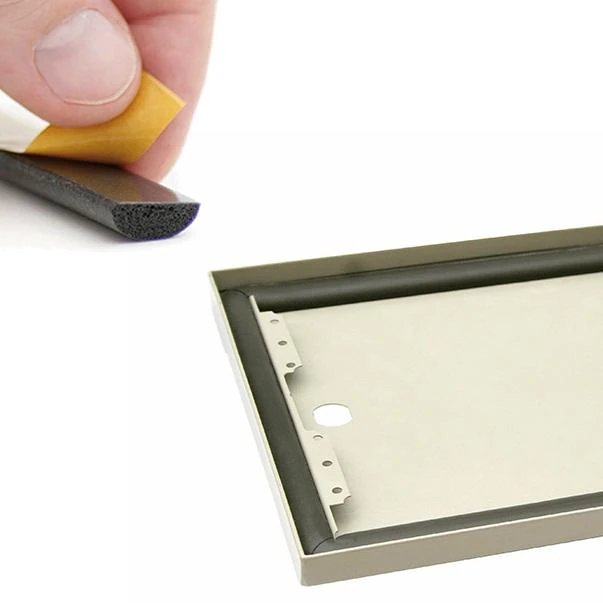

Cabinet Door GasketsSilicone foam or EPDM rubber strips for perimeter compression sealing
Access Panel SealsAdhesive-backed gaskets for removable covers and inspection panels
Cable Entry PadsFoam and rubber parts around cable openings, glands and connector areas
Junction Box SealsDie-cut frames and pads for compact electrical boxes and housings
Vent and Filter InterfacesDust sealing and vibration cushioning around vent structures
Internal Support PadsCushioning and anti-rattle parts for controllers, relays and mounted components
Converting and customization
Made to fit the enclosure geometry and assembly process.
BISCOTECH can adjust material thickness, hardness, density, adhesive system, release liner, width and die-cut shape so the gasket fits the enclosure drawing and installation workflow.
Die-cut door gaskets and frame sealsAdhesive-backed strips and roll formatsKiss-cut parts for fast peel-and-place assemblyLaminated foam and rubber constructionsPrototype samples from drawings or samplesCustom thickness, width and liner selection
Application example
Example: an outdoor control cabinet perimeter seal.
Requirement
An outdoor control cabinet may need a gasket that could seal the door frame while staying easy to install during batch assembly.
Proposed approach
Review the compression gap, door structure, target environment, adhesive surface and installation method, then compare silicone foam and EPDM rubber options.
Sample validation
Discuss a similar requirement Prepare candidate samples to evaluate fit, compression recovery and adhesive compatibility. Check performance under the intended operating conditions before confirming the material and production format.
FAQ
Common questions about outdoor enclosure gasket materials.
What material should I choose for outdoor electrical enclosure gaskets?
The best choice depends on temperature, compression gap, flame-retardant requirements, sealing target and exposure conditions. Silicone foam is useful for wide temperature range and compression recovery, while EPDM rubber is often selected for weather and ozone resistance.
Can you supply gaskets with pressure-sensitive adhesive?
Yes. BISCOTECH can add single-sided or double-sided adhesive, release liner and kiss-cut formats so operators can apply strips or die-cut gaskets more efficiently during assembly.
What details are needed for a quote?
A drawing or sample, gasket size, thickness, compression space, adhesive surface, working temperature, outdoor exposure condition and estimated quantity will help us recommend the suitable material and converting format.
